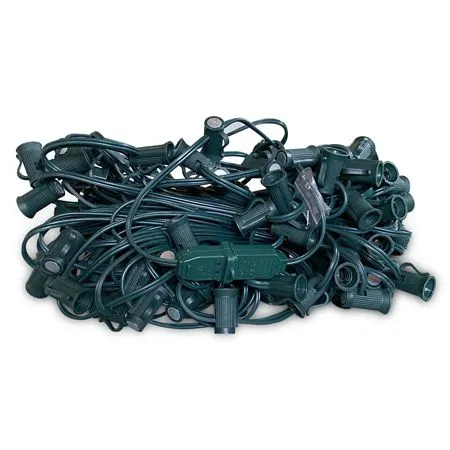

LITE-NETICS C9 Cord Green Wire – 12″ Spacing – SPT-1 – 100′

LITE-NETICS C9 Cord Green Wire – 12″ Spacing – SPT-1 – 100′



• • Nickel Protected Magnet – Coating that prevents any rusting
• • Works with ferrous metals – will not work on Aluminum
• • Not recommended for surface temperatures that reach 175 degrees Fahrenheit or higher.
• • Brand: Lite-netics
• • Number of Sockets: 100
• • Spacing: 12″
• • Socket Type: Intermediate, E17, C9
• • Connection: Plug ends
• • Voltage: 110/120
• • Wire Length: 100′
• • Lead Length: 6″
• • Tail length: 6″
• • Wire gauge: 18
• • Rating: SPT-1 – .03 inch insulation thickness
• • UL Rating: indoor and outdoor use

Maximum bulb load:

• 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
• 100 (C9) 7-watt incandescent bulbs
• 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

• Up to 50 feet= 10 amps
• 51-100 feet= 7 amps
• 101-150 feet= 5 amps
• 151-200 feet= 3.5 amps*
• 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications



Frequently Asked Questions

Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

Some people simply fold the cord over into a small, 1″ loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
